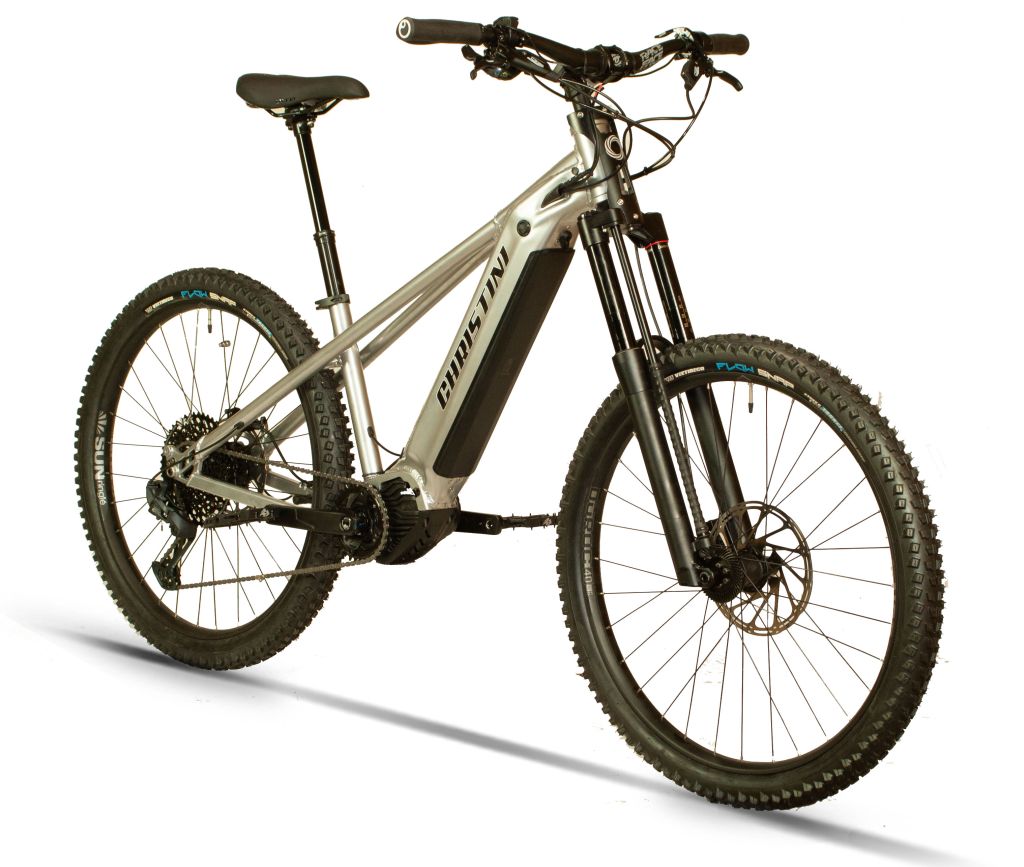

AWD 27.5+ i

$5,895

Description

The Christini 27.5+ i offers some of the industries state of the art components and is powered by the new Bafang M560 750W, 140Nm mid motor.  This traction control mountain bike will offer you performance and control that hard to find in other high end hardtail mountain bikes but will stick to the trails with our active traction control system.  The Integrated downtube design offers a 14Ah battery to go with the sleek wishbone design which incorporates the drive shaft system for the AWD.  Add a 150mm of RockShox suspension to the front and this bike will tackle all the tough terrain you can throw at it!

And don’t forget, we build these from the ground up in Philadelphia, PA!

CHRISTINI AWD System
– Handlebar-mounted shift on the fly AWD engagement switch
– 7075 Spiral-Drive aluminum bevel and pinion gears
–7075 aluminum interlocking clutch
– Tubular aluminum driveshafts
– Coated steel universal joints
– Stainless sealed cartridge bearings
– Total AWD system weight is 2.3 lbs

SPECIFICATIONS

FRAMESET
Frame6061 T6 Aluminum with integrated direct AWD system
ForkCHRISTINI/RockShox Revelation RC 35mm 150mm travel
HEADSET
HeadsetCHRISTINI integrated headset with sealed bearings.
WHEELS
Front HubCHRISTINI AWD one way clutching
Rear HubSun Ringle SRC Boost 148mm thru-axle XD Drive
RimsSun Ringle Duroc 40 Rim – Tubeless setup
SpokesWheelsmith DB black
Tires27.5+ x 2.8 Terrene
DRIVETRAIN
CrankBafang M560 ISIS Spindle
ChainringSRAM X-Sync 2 Eagle 32 Steel
CassetteSRAM GX 12-Speed 10-42t Cassette
ShifterSRAM GX 12-Speed Shifter
Rear DerailleurSRAM GX 12-Speed Rear Derailleur
ChainPCX1 Chain
PedalsRace Face Chester composite platform
BRAKES
LeversSRAM G2Hydraulic
CalipersSRAM G2 Hydraulic
RotorsSRAM Centerline 203mm Front/180mm Rear
COCKPIT
BarsRaceFace 31.8 x 20mm Riser
StemRaceFace 31.8 x 60mm Length
SeatpostPNW 150mm External Dropper
SaddleWTB Speed Pro Gel
GripsErgon GP1
E-DRIVE SYSTEM
MotorBafang M560 Mid Drive 750W with Torque Sensing
ControllerBafang Color Display
Battery48V 14Ah
WEIGHT49 LBS

FRAME SIZE AND GEOMETRY

SIZEABCDEF
Small (fits like 16″)69°73°22.5″16″42.2″12.5″
Medium (fits like 18″)69°73°23.5″18″43.7″12.5″
Large (fits like 20″)69°73°24.5″20″45″12.5″
**All dimensions are measured with 26 x 4.8 tire
**Addition of 100mm suspension changes the headtube angle to 67 degrees.

Geometry
