| FRAMESET | |
|---|---|
| Frame | 6061 T6 Aluminum with integrated direct AWD system |
| Fork | CHRISTINI/RockShox Psylo 100mm Suspension Fork |
| HEADSET | |
| Headset | CHRISTINI Integrated with sealed bearings |
| WHEELS | |
| Front Hub | CHRISTINI AWD 150mm One Way clutching |
| Rear Hub | Sun Ringle SRC 197mm thu-axle |
| Rims | Sun Ringle Mulefut 80m Rim – Tubeless setup |
| Spokes | Wheelsmith DB black |
| Tires | Terrene Johnny 5 – 26 × 4.8 |
| DRIVETRAIN | |
| Crank | Bafang Ultra Drive ISIS Spindle |
| Chainring | SRAM X-Sync 2 Eagle 34t Steel |
| Cassette | SRAM NX Eagle 11-50t Cassette |
| Shifter | SRAM NX Eagle 12 Speed Trigger Shifter |
| Rear Derailleur | SRAM NX Eagle 12 Speed Rear Derailleur |
| Chain | SRAM NX Eagle 12 Speed Chain |
| Motor | Bafang M560 Mid-Drive, 750W / 150 Nm |
| Pedals | RaceFace Chester composite platform |
| BRAKES | |
| Levers | SRAM DB Hydraulic |
| Calipers | SRAM DB Hydraulic |
| Rotors | SRAM Centerline 203mm Front/180mm Rear |
| COCKPIT | |
| Bars | RaceFace Chester 31.8mm Riser |
| Stem | RaceFace Chester 31.8mm 60mm |
| Seatpost | PNW 125mm External Dropper |
| Saddle | WTB |
| Grips | Ergon GP1 |
| E-DRIVE SYSTEM | |
| Motor | Bafang M560 Mid-Drive, 750W / 150 Nm |
| Controller | Bafang Color Display |
| Battery | 52V 15Ah, premium Samsung/LG cells |
| WEIGHT | 18″ @ 68 LBS |
$5,895
Every CHRISTINI is custom built to order — including your choice of custom frame color, something no import-frame brand can offer. Call or email to spec yours.
Call +1-215-351-9895Full specifications

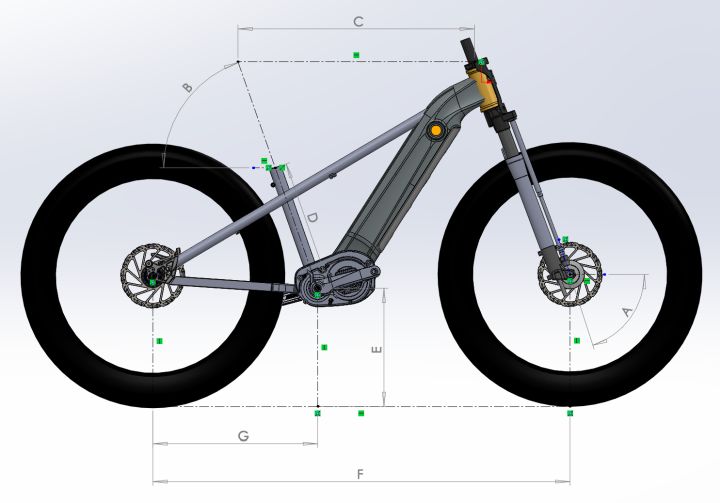

Frame sizing
| SIZE | A - Head Tube Angle | B - Seat Tube Angle | C - Effective Top Tube L | D - Seat Tube L | E - Bottom Bracket H | E - Wheel Base L | G- Chainstay L |
| Small (16"-17") | 71° | 71° | 24.4″ (620mm) | 15″ | 13.4″ (340mm) | 44.8" (1140mm) | 18.5" (471mm) |
| Medium (18"-19") | 71° | 71° | 25.5" (650mm) | 15″ | 13.4″ (340mm) | 46.1″ (1170mm) | 18.5" (471mm) |
| Large (20"-21") | 71° | 71° | 26.7″ (680mm) | 16″ | 13.4″ (340mm) | 47.2″ (1200mm) | 18.5" (471mm) |
| Extra Large (22"-23") | 71° | 71° | 27.5" (700mm) | 16″ | 13.4″ (340mm) | 48.4″ (1230mm) | 18.5" (471mm) |
